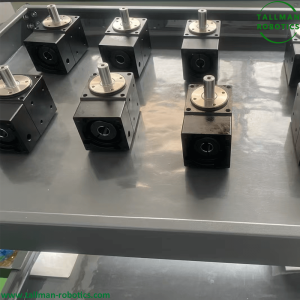

Cam Indexing Are Ready for Delivery to USA

Cam Indexing is a precision mechanical motion control method used to convert constant rotary input into intermittent, or indexed, output motion. It is most commonly achieved through the use of a  cam indexer or indexing drive. This device contains a specialized cam (often a globoidal or barrel cam) that engages with a mating set of followers on an output turret or flange. As the input shaft rotates smoothly and continuously, the curved profile of the cam forces the followers to move the output shaft in a precise, start-stop sequence.

This mechanism allows for extremely accurate positioning, high speed, and smooth acceleration with minimal vibration. Cam indexing is essential in automated manufacturing for applications like rotary assembly tables, packaging machinery, and CNC tool changers, where parts must be moved to a specific location, held stationary for work, and then advanced again.

Cam Indexing is A Mechanical Solution for Precise Positioning

Definition and Mechanism of Cam Indexing:

Cam indexing is a mechanical method that utilizes a cam mechanism to convert continuous rotational motion into precise, intermittent movements. This allows components in machinery to be moved to predefined positions sequentially. The cam’s profile, often featuring lobes or grooves, dictates the motion of a follower, which translates into controlled indexing.

Key Components of Cam Indexing:

1. Cam:Designed with specific profiles (e.g., lobes, grooves) to control movement.
2. Follower: Engages with the cam, translating its rotational motion into linear or rotational output.
3. Indexing Mechanism: Converts follower motion into indexed positions, possibly integrated with systems like the Geneva drive for intermittent motion.

How A Cam Indexer Works:

Cam Profile: The shape of the cam of Cam Indexing determines the motion sequence—rise (movement to next position), dwell (hold), and return (if needed).
Dwell Periods: Allow the follower to remain stationary, ensuring the component stays in position for operations like assembly or packaging.

Applications of Cam indexers:

Common in automated machinery requiring high precision: packaging, printing presses, assembly lines.
Preferred in harsh environments where electronic systems might fail.

Conclusion:
Cam indexing is a robust, mechanical solution ideal for applications demanding precise, repeatable positioning. Its effectiveness hinges on meticulous cam design and material choice, offering a reliable alternative to electronic systems in challenging environments.
