Comprehensive Technical Manual of Cam Indexer

Technical Manual of Cam Indexer is a comprehensive engineering document that elaborates on the core device for converting continuous rotational motion into high-precision intermittent motion. This Technical Manual of Cam Indexerl usually covers its working principle (based on the rigid meshing of cam arc surface and roller bearings), main classifications (such as flange type and shaft type), selection calculation methods, key performance parameters (positioning accuracy up to ± 30 arc seconds), installation steps, and detailed maintenance guidelines to ensure long-lasting and stable automated production operation.

Introduction of Technical Manual of Cam Indexer: Industrial Positioning and Value of Cam Indexer

1.1 Definition and Core Mission

Cam Indexer (cam-driven indexing system, commonly known as cam indexer or intermittent splitter) is a mechanical transmission device that converts continuous rotary motion into high-precision intermittent motion. Its core mission lies in providing precise, stable, and repeatable workstation switching or positioning functions for automated production. Without the intervention of electronic control systems, it achieves orderly alternation between motion and rest through a purely mechanical structure, making it an indispensable core transmission component in modern manufacturing.

From the perspective of industrial essence, cam indexers resolve the contradiction between “continuous power input” and “intermittent operation requirements” in automated production. For instance, on a bottle cap assembly line, the continuous rotational power provided by the motor needs to be converted into the step-by-step positioning of bottle caps (feeding, tightening, inspection, and unloading). Cam indexers, through the rigid constraints of their mechanical structure, ensure that the positioning error at each step is controlled to the micrometer level, significantly surpassing the response speed and stability of traditional electrical control.

1.2 Development history and technological evolution in Technical Manual of Cam Indexer

1.2.1 Origin and Prototype

The technical prototype of the cam indexer can be traced back to the Geneva Drive mechanism during the Industrial Revolution in the 19th century. However, early devices suffered from defects such as low positioning accuracy, weak load-bearing capacity, and significant motion impact, making them only suitable for low-speed, low-precision scenarios (such as textile machinery).

1.2.2 Modern technological breakthroughs

In the mid-20th century, with the development of precision machining technology, European and American manufacturers (such as Cambot in the United States and Stieber in Germany) took the lead in launching indexers based on conjugate cam design. By optimizing cam profile curves (such as sine curves and modified trapezoidal curves), they achieved a smooth transition during the motion process, elevating the positioning accuracy to the level of ±30 arc seconds.
After the 1980s, Asian manufacturers (such as Tanzi from Taiwan, China and Tallman Robotics from Chinese Mainland) further reduced product weight, improved load-bearing capacity, and expanded into multiple product series through material improvement (using high-strength alloy steel) and processing technology upgrades (five-axis milling), meeting the customized needs of different industries.

1.2.3 Development trend of intelligentization

In the 21st century, cam indexers began to integrate with electronic technology, giving rise to intelligent products with position feedback. These products can monitor indexing accuracy in real-time through sensors and achieve parameter adjustment in conjunction with PLC systems. Simultaneously, lightweight and miniaturized designs (such as the ultra-thin DA series) and maintenance-free technology (100,000 hours of trouble-free operation) have become core directions for technological research and development.

1.3 Industrial application value in Technical Manual of Cam Indexer

The core value of the cam indexer is reflected in the following three dimensions:
• Accuracy guarantee: The repeatability of positioning accuracy can reach ±15~±30 arc seconds, meeting the stringent requirements of precision manufacturing (such as electronic component assembly, medical equipment processing);
• Efficiency improvement: The input shaft speed can reach up to 800rpm, with an indexing frequency far exceeding the intermittent control of servo motors, making it suitable for high-speed production lines (such as processing 600 bottle caps per minute);
• Reliability advantage: Pure mechanical structure without the risk of electronic component aging, operating temperature range of -20℃~120℃, capable of long-term stable operation in harsh industrial environments such as dust and oil contamination, with a mean time between failures (MTBF) exceeding 100,000 hours.

Core Structure and Operating Principle of Cam Indexer in Technical Manual of Cam Indexer.

2.1 Basic Structure Composition:

The structural design of the cam indexer follows the principle of “simplicity and efficiency”. The core components consist of six major modules, and each part works together to ensure motion accuracy and stability:

2.2 Core Operating Principle in Technical Manual of Cam Indexer:

The working process of the cam indexer is based on the “rigid engagement between the cam profile and the follower”. Its motion cycle can be divided into the indexing phase and the dwell phase.

The specific principle is as follows:

1. Power input: The drive motor drives the input shaft to rotate through a coupling, and the cam rotates synchronously with the input shaft;

2. Indexing phase: When the curved profile of the cam comes into contact with the roller of the follower, the rotational force of the cam is transmitted to the indexing mechanism through the roller, pushing the output shaft (or worktable) to rotate at a preset angle (i.e., “indexing”). At this time, the curvature change of the cam profile determines the acceleration and velocity curves of the output shaft. An optimized profile design (such as a modified sine curve) can achieve smooth motion without impact;

3. Dwell phase: When the straight profile of the cam comes into contact with the roller, the follower stops moving, and the output shaft remains stationary (i.e., “dwell”). At this time, the workpiece can undergo assembly, processing, inspection, and other operations. The ratio of dwell time to indexing time (i.e., “active-to-passive ratio”) can be adjusted through cam profile design, with common ratios being 1:1, 2:1, and 3:1.

Key technical features:

Adopting a “multi-roller engagement” design (typically with 2-3 sets of rollers simultaneously contacting the cam), ensuring uniform force distribution, reducing single roller load, and enhancing stability during high-speed operation;

The cam and roller are in line contact rather than point contact, with a large contact area and strong load-bearing capacity, capable of withstanding radial loads up to 4850kgf (such as the 450DA model);

Eliminating mechanical clearance through preloading, ensuring no return error during reverse motion and long-term stability of positioning accuracy.

2.3 Kinematic Characteristic Parameters

The kinematic characteristics of a cam indexer are defined by the following core parameters, which directly affect equipment selection and application effectiveness:

Indexing Accuracy: The deviation between the actual angle and the theoretical angle of each indexing of the output shaft. The industry standard is ±30 arc seconds, and high-precision models can achieve ±15 arc seconds (such as Sango Automation products);

Repeatability: The consistency of positioning errors after multiple indexings, typically ≤±5 arc seconds;

Indexing Speed: The time it takes for the output shaft to complete one indexing, which is related to the input shaft speed and indexing angle. High-speed models can achieve 0.05 seconds per indexing;

Dwell Time: The time the output shaft remains stationary, determined by the length of the straight segment of the cam profile, and can be customized according to operational needs;

Load Capacity: Includes radial load and axial load, referring to the maximum bearing force perpendicular to and along the output shaft direction, respectively. For example, the 190DA model has a radial load of 1840kgf and an axial load of 920kgf.

Classification and Model System of Cam Indexers in

3.1 Core Classification Standards:

Based on dimensions such as structural design, output mode, and application scenarios, cam indexers can be divided into six major series, each with clear application scopes and technical characteristics:

Classification and Model System of Cam Indexers

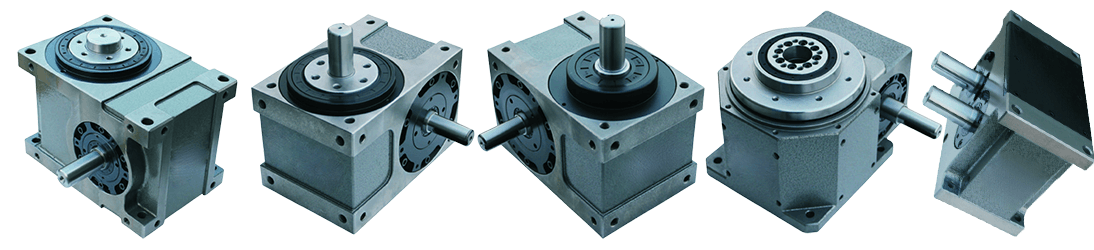

3.2 Detailed Explanation of Six Series of Products

3.2.1 DF Type: Flange Output Cam Indexer Series

Structural Features: The output end is designed with a flange, allowing direct connection to the workbench or load, eliminating the need for additional couplings and facilitating easy installation;

Core Parameters (taking common models as examples):

Applicable scenarios: Small and medium-sized rotary workbenches, automated assembly lines, and electronic component processing equipment, especially suitable for scenarios where compact installation space is required.

3.2.2 DS Type: Shaft-output Cam Indexer Series

Structural Features: The output end is designed as a solid shaft or hollow shaft, allowing for flexible transmission through components such as gears and pulleys;

Core Advantages: The hollow shaft model can achieve threading, ventilation, or material conveying functions, with a maximum hollow bore diameter of up to 120mm (such as the 450DS model);

Typical Applications: Conveyor line corner indexing, bottle cap machine feeding mechanism, machine tool change.

3.2.3 Type DE: Flange & Shaft Dual-Output Cam Indexer Series

 Structural Features: It possesses both flange output and shaft output functions, allowing users to choose the installation method according to actual needs, with strong universality;

Core Parameters (Tallman Robotics Products):

Performance advantages:

Compact structural design, consisting of only one cam and output turret, with no redundant components, small size, and light weight;

Smooth and noiseless operation, with preloaded loads to eliminate gaps, and vibration amplitude ≤0.02mm;

Self-locking function, eliminating the need for additional braking devices during the dwell phase, saving energy and ensuring safety;

Maintenance-free design, with a service life exceeding 100,000 hours, requiring only regular lubricant replacement.

3.2.4 DT Type: Fixed Positioning Cam Indexer Series

Structural Features: Focused on fixed angle positioning, with non-adjustable indexing angles, suitable for automation equipment with a single process;

Core Features: Extremely high positioning accuracy (≤±15 arc seconds), strong load-bearing capacity, suitable for heavy-load scenarios (such as machine tool processing positioning);

Typical Applications: Drilling machine table positioning, welding robot workstations, precision inspection equipment.

3.2.5 DA Type: Ultra-thin Workbench Cam Indexer Series

Structural Features: Height dimension optimized, ultra-thin design (some models have a height of ≤50mm), suitable for scenarios where installation space is limited;

Core Parameters (complete model series):

 Applicable scenarios: Desktop automation equipment, small rotary workbenches, electronic equipment assembly lines (such as mobile phone screen bonding machines).

3.2.6 PU Type: Parallel Indexing Cam Indexer Series

Structural Features: Utilizes a parallel conjugate cam mechanism, suitable for long-pitch rotary conveying or long dwell time applications;

Core Advantages:

Customized cam curve design, capable of matching the dynamic requirements of specific processes (such as the heating and curling processes of paper cup machines);

Excellent high-temperature performance, capable of long-term operation in environments above 70°C, with material selection of high-temperature resistant alloy steel;

Strong dynamic adjustment capability, adaptable to materials of different thicknesses and hardnesses, automatically optimizing indexing torque;

Typical Model: PU125DS, specifically designed for paper cup machines, capable of achieving high-speed production of 300 paper cups per minute, with indexing accuracy of ±30 arc seconds and radial load of 1200kgf.

3.3 Analysis of Model Naming Rules

The model naming of cam indexers follows a unified industry standard. Taking the DE series as an example, the meaning of the model code is as follows:

Prefix (DE): Product series identification (flange & shaft dual output);

Digit (45/60/70, etc.): Core dimensional parameter (usually referring to the cam diameter or output shaft diameter, in mm);

Suffix (optional): Special function identification (such as “-H” for hollow shaft, “-HT” for high-temperature type).
Example: DE80-H indicates “80mm specification flange & shaft dual output cam indexer, hollow shaft design”.

Key Technical Parameters and Selection Guide in Technical Manual of Cam Indexer

4.1 Detailed Explanation of Core Technical Parameters

4.1.1 Kinematic Parameters

Input Shaft Speed: Range 5~800rpm. The actual speed needs to be adjusted according to the load size. For high-speed applications (>400rpm), the manufacturer should be informed in advance for structural optimization;

Indexing Angle: The rotation angle for a single indexing, determined by the number of stations. The calculation formula is “360°÷ number of stations”, for example, 8 stations correspond to an indexing angle of 45°;

Dwell/Index Ratio: The ratio of dwell time to indexing time, commonly seen as 1:1, 2:1, 3:1, which can be customized through cam profiles (for example, increasing the length of the cam straight line segment for long dwell time).

4.1.2 Load Parameters

Radial Load: The maximum bearing force perpendicular to the direction of the output shaft, measured in kgf, ranging from 130kgf (45DE) to 4850kgf (450DA);

Axial Load: The maximum bearing force along the direction of the output shaft, measured in kgf, typically 50% to 70% of the radial load;

Overturning Moment: The torsional moment of the load on the output shaft, measured in kgf·m, which must be controlled within the limits specified by the manufacturer, otherwise it will affect the indexing accuracy.

4.1.3 Accuracy parameters

Indexing accuracy: ±15~±30 arc seconds (1 arc second = 1/3600 degree), high-precision models adopt cam grinding technology, achieving an accuracy of ±10 arc seconds;

Repeatable positioning accuracy: ≤±5 arc seconds, ensuring consistency of positioning error after multiple indexings;

Backlash: ≤0.5 arc seconds, eliminated by preload, ensuring no lost motion during reverse movement.

4.1.4 Physical Parameters

Weight: 7~1600kg. Small models (such as 45DE) can be manually installed, while large models (such as 450DA) require the use of lifting equipment;

Installation Method: Supports any surface installation (VW 1-6 standard), can be installed horizontally, vertically, or obliquely, and the flatness of the installation surface must be ≤0.02mm/m;

Operating Temperature: -20℃~120℃. Special lubricating grease (such as Mobil XHP 222) should be used in high-temperature environments.

4.2 Selection Process and Method

4.2.1 Four-Step Selection Method

1. Clarify Operational Requirements:

Determine the number of workstations (2~48 workstations) and the indexing angle;

Calculate the required indexing speed (times/minute) and dwell time;

Calculate the load weight, radial/axial force, and overturning moment.
2. Matching product series:

Compact installation space → DA series (ultra-thin type);

Requiring dual output mode → DE series (flange & shaft); o Heavy-duty load → DA series large model (330DA/450DA);

High-temperature environment → PU series (dedicated for paper cup machines).
3. Verify parameter matching:

Load parameters ≤ product rated value (with a 20% safety margin reserved);

Input shaft speed ≤ product upper limit (for high-speed applications, the manufacturer needs to be confirmed);

Installation method meets product requirements (such as the flatness of the installation surface).
4. Confirm additional requirements:

Hollow shaft requirements (threading/feeding);

Special environmental requirements such as high temperature/dustproof/waterproof;

Customized cam curves (such as long dwell time).

4.2.2 Selection example application scenario:

automatic drilling machine, 8 workstations, workbench diameter 500mm, load weight 100kg, radial force 500kgf during drilling, axial force 300kgf, required indexing speed 60 times/minute, installation space height ≤100mm.
Selection process:

1. Number of workstations: 8 → Indexing angle: 45°, Indexing speed: 60 times/minute → Input shaft speed = 60 × (dynamic-to-static ratio 1:1) = 60rpm;

2. Installation space height: ≤100mm → Select DA series (ultra-thin type);

3. Load parameters: Radial force 500kgf + 100kg (load weight) = 600kgf, Axial force 300kgf → Match with model 110DA (radial load 700kgf, axial load 350kgf, height ≤85mm);

4. Additional requirements: No special environmental requirements, select standard model 110DA, match with motor power 0.4kW.

4.3 Common Misconceptions in Selection

Ignoring Overturning Moment: Focusing solely on radial/axial loads without considering the overturning moment caused by load eccentricity may result in bearing damage;

Pursuing Excessive Precision: Choosing ±15 arc-second models for ordinary assembly lines increases costs, when in reality ±30 arc-second models already meet the demand;

Using at Excessive Speeds: Input shaft speeds exceeding the rated value lead to increased wear on the cam and roller, shortening their service life;

Insufficient Precision of Installation Surface: The flatness of the installation surface exceeds tolerances, causing the output shaft to tilt and reducing indexing accuracy.

Application Fields and Industry Cases in Technical Manual of Cam Indexer

5.1 Automated Assembly and Production Lines

5.1.1 Core Application Scenarios

Electronic component assembly (such as capacitors, resistor plug-ins);

Automotive parts assembly (such as sensor and relay installation);

Medical device assembly (such as syringe and infusion set assembly).

5.1.2 Case: Automotive Electronic Sensor Assembly Line

Equipment Requirements: 12 workstations, indexing speed of 40 times/minute, positioning accuracy of ±20 arc seconds, load of 5kg/workstation;

Selected Product: DE110 model (flange & shaft dual output, radial load of 560kgf, indexing accuracy of ±30 arc seconds);

Application Effects:

Production line efficiency increased by 30%, with daily output reaching 50,000 units;

Assembly error rate reduced from 0.5% to 0.05%;

Equipment operated continuously for 18 months without malfunction, and maintenance costs decreased by 60%.

5.2 Packaging Machinery Industry in Technical Manual of Cam Indexer

5.2.1 Core Application Scenarios

Bottling Production Line (filling, capping, labeling);

Blister Packaging Machine (pharmaceuticals, food sealing);

Paper Product Packaging (paper cup, paper box forming).

5.2.2 Case: High-Speed Paper Cup Forming Machine

Equipment Requirements: 16 stations, indexing speed of 300 times/minute, high-temperature environment (70°C), load of 8kg/station;

Selected Product: PU125DS model (parallel indexing cam, high-temperature type, radial load of 1200kgf, indexing accuracy of ±30 arc seconds);

Technical Optimization:

Customized cam curve to match the dynamic requirements of paper cup heating, curling, and forming;

Use of high-temperature grease to ensure stable operation at 70°C;

Multi-roller engagement design to reduce vibration during high-speed operation (amplitude ≤0.01mm);

Application Effect:

Paper cup production speed reaches 300 pieces/minute, far exceeding the industry average (200 pieces/minute);

Product pass rate increases from 98.5% to 99.8%;

Equipment operates without failure for 120,000 hours.

5.3 Machine Tools and Processing Equipment

5.3.1 Core Application Scenarios

CNC machine tool tool change;

Workbench positioning for drilling machines and tapping machines;

Indexing mechanism for precision grinding machines.

5.3.2 Case: Automatic Drilling Machine Workbench

Equipment Requirements: 6 workstations, indexing accuracy ±15 arc seconds, radial load 800kgf, overturning moment 50kgf・m;

Selected Product: DT180 model (fixed positioning series, high precision type, indexing accuracy ±15 arc seconds);

Maintenance Plan:

Clean the equipment surface daily to avoid metal debris residue;

Check the bolt pre-tightening force monthly, and add lubricating grease every 500 hours;

Inspect the cam wear condition quarterly to ensure the contact area is ≥85%;

Application Effect:

Drilling accuracy reaches ±0.01mm, meeting the processing requirements of precision parts;

Equipment downtime is reduced by 40%, and annual production capacity is increased by 25%.

5.4 Food Processing Industry

5.4.1 Core Application Scenarios

Food sorting (such as grading of candies and nuts);

Canning and sealing;

Baking food plating (such as cookies and bread).

5.4.2 Case: Candy automatic sorting line

Equipment requirements: 24 workstations, indexing speed of 120 times/minute, hygienic design (corrosion-resistant, easy to clean), load capacity of 3kg per workstation;

Selected product: DA90 model (ultra-thin, stainless steel housing, radial load capacity of 500kgf);

Technical modifications:

Housing made of 304 stainless steel, with a sealing design to prevent food residue from entering;

Use of food-grade lubricating grease (compliant with NSF H1 standards);

Application results:

Sorting efficiency of 14,400 pieces/hour, with a sorting accuracy rate of 99.9%;

Equipment cleaning time reduced by 50%, meeting food hygiene standards.

Installation, Debugging, and Maintenance in Technical Manual of Cam Indexer

6.1 Installation Process and Specifications

6.1.1 Preparation before Installation

Check the appearance of the equipment: confirm that the cams and rollers are undamaged, the bearings rotate flexibly, and the lubricating oil level is normal;

Clean the installation surface: remove oil stains and dust from the installation surface, ensuring that the flatness is ≤0.02mm/m and the roughness Ra is ≤3.2μm;

Prepare tools: torque wrench, level meter, micrometer, and coupling (if needed).

6.1.2 Installation steps:

1. Fix the indexer on the installation surface and tighten the bolts using a torque wrench according to the manufacturer’s recommended torque (usually M8 bolt torque 15~20N·m);

2. Use a level meter to adjust the levelness of the indexer, with an error of ≤0.02mm/m;

3. Connect the drive motor: Connect the input shaft through a coupling or pulley, ensuring coaxiality of ≤0.05mm (for coupling connection) or parallelism of ≤0.1mm (for belt connection);

4. Install the load: Fix the workbench or load on the output shaft, ensuring that the center of gravity of the load coincides with the centerline of the output shaft to avoid eccentric load;

5. Wiring check: Connect the motor power cord and confirm the correct direction of rotation (clockwise/counterclockwise according to the cam design requirements).

6.1.3 Installation precautions

Do not knock the output shaft: Handle with care when installing the load to avoid damaging the internal bearings due to knocking;

Bolt pre-tightening should be uniform: Tighten the mounting bolts in multiple steps, crossing them out to ensure uniform pre-tightening force;

Reserve cooling space: Reserve a cooling space of ≥10cm around the equipment to avoid heat accumulation.

6.2 Debugging Methods and Techniques

6.2.1 No-load Debugging

1. Start the motor and run it without load for 10 to 30 minutes, observing the equipment operating status:

No abnormal noise (noise level ≤75dB);

Housing temperature ≤75℃;

Output shaft rotates smoothly with no obvious vibration.

2. Use a micrometer to test the indexing accuracy:

Mark 8 testing points evenly on the output shaft;

Record the reading of the micrometer after each indexing, and calculate the deviation between the actual indexing angle and the theoretical angle;

If the deviation exceeds the tolerance (>±30 arc seconds), adjust the levelness of the mounting surface or the coaxiality of the motor.

6.2.2 Load commissioning

1. Gradually increase the load (starting from 50% of the rated load), increasing by 25% each time and running for 30 minutes;

2. Test the indexing accuracy and operational stability under load conditions:

Indexing accuracy deviation ≤ ±30 arc seconds;

No impact or friction noise;

No significant deformation of the output shaft.
3. Dynamic adjustment: If excessive vibration occurs, reduce the input shaft speed or adjust the load’s center of gravity; if accuracy is insufficient, check the contact state between the cam and the roller.

6.2.3 Solutions to common debugging issues

6.3 Maintenance System in Technical Manual of Cam Indexer

6.3.1 Routine Maintenance (Daily/Weekly)

Cleaning: Wipe the equipment casing with a non-woven cloth to remove metal shavings, dust, and residual cooling fluid; install a dust cover in dusty environments;

Condition Monitoring:

Listen to the operating sound, and shut down immediately if there is any sharp friction or impact sound;

Touch the casing with your hand to feel if the temperature is abnormal (≤75℃);

Check the lubricant level, and replenish it in time if it is below the lower limit of the oil window.

6.3.2 Regular maintenance (monthly/quarterly)

Monthly maintenance:

Check the mounting bolts and load-fixing bolts with a torque wrench to ensure uniform pre-tightening force;

Check the belt/coupling: belt tension deflection ≤ 5mm/1000mm, coupling deviation ≤ 0.05mm;

Clean the lubrication nozzle to remove impurities.
Quarterly maintenance:

Cam wear detection: Disassemble the index plate, apply red powder to the cam surface, rotate the input shaft, and check the contact area. If it is less than 85%, contact the manufacturer for grinding; o Bearing condition assessment: Manually rotate the input shaft and feel whether the resistance is uniform. Replace the bearing if the radial clearance is greater than 0.1mm;

Grease replacement: Select ISO VG 220 lithium-based grease (such as Mobil XHP 222), and inject 1/3 of the volume of the indexer.

6.3.3 Annual maintenance (every year / every 100,000 hours)

 Comprehensive disassembly and cleaning: Clean components such as cams, index plates, and rollers with kerosene to remove oil stains and metal debris;

Component inspection:

Cam profile: Inspect for wear, pitting, and cracks, and perform grinding and repair if necessary;

Roller: Inspect the surface wear condition and replace rollers with wear exceeding the tolerance (wear amount > 0.1mm);

Seals: Replace aged sealing rings to prevent lubricant leakage;

Reassembly: Perform preload adjustment according to the original factory requirements to ensure that the clearance is ≤0.5 arc seconds;

Performance testing: Conduct no-load and load tests to verify the indexing accuracy and operational stability.

6.3.4 Lubrication Management Specification

Grease Selection: For high-temperature environments (>70°C), use high-temperature lithium-based grease. For ordinary environments, use ISO VG 220 lithium-based grease;

Refilling Cycle: Every 500 hours or monthly (whichever comes first), and for high-speed applications (>400rpm), shorten to every 300 hours;

Refilling Method: Inject through the lubrication nozzle, and run for 10 minutes after injection to ensure even distribution of the grease;

Replacement Cycle: Completely replace the grease annually or after every 10,000 hours of operation.

6.3.5 Fault diagnosis and troubleshooting

Industry Standards and Quality Control in Technical Manual of Cam Indexer

7.1 International and Domestic Standards in Technical Manual of Cam Indexer

7.1.1 International Standards

ISO Standards: ISO 281-1 (Rolling Bearing Dynamic Load Rating and Lifespan), ISO 492 (Cylindrical Roller Bearings);

DIN Standards: DIN 3408 (Cam Mechanism Design Specifications), DIN 5408 (Involute Spline Connection);

ANSI Standards: ANSI B17.6 (Roller Chains and Sprockets), ANSI/ABMA 9 (Bearing Precision Standards).

7.1.2 Domestic standards

GB/T standards: GB/T 307.1 (rolling bearings – radial bearings – tolerances), GB/T 10089 (cylindrical worm and worm wheel accuracy);

Industry standards: JB/T 10818 (cam indexer – technical conditions), which stipulates core indicators such as indexing accuracy, load capacity, and service life.

7.2 Quality Control System in Technical Manual of Cam Indexer

7.2.1 Quality Control of Raw Materials

Cam Material: 40CrNiMoA alloy steel is selected, with chemical composition conforming to the GB/T 3077-2015 standard, and sulfur and phosphorus content ≤0.025%;</p></span>

Bearing Material: GCr15 bearing steel, with hardness HRC62~64, and hardenability ≥5mm;</span>

Housing Material: HT250 cast iron, with tensile strength ≥250MPa, and free of casting defects such as porosity and sand holes.</span>

7.2.2 Quality Control in the Processing Process

 Cam Processing: Utilizing a five-axis milling machine, achieving a contour accuracy of ≤±0.005mm and a surface roughness of Ra≤0.8μm;</span></span>

Heat Treatment Process: Cam carburizing and quenching with a depth of 0.8~1.2mm, achieving a hardness of HRC60~62, and a tempering temperature of 200~220℃ to eliminate internal stress;</span></span>

 Assembly Process: Employing a constant temperature assembly workshop (temperature 20±2℃), ensuring a coaxiality error of ≤0.01mm, and controlling the preload to be within 5~10N・m.</span></span>

7.2.3 Finished product testing standards

Indexing accuracy testing: Using a laser interferometer, measure the indexing angles of 8 workstations, with an error of ≤±30 arc seconds;</span>

Load capacity testing: Operate for 1000 cycles under 120% of the rated load, with no abnormal deformation or wear;</span></p>

Lifespan testing: Simulate actual working conditions, operate continuously for 100,000 hours, with an index accuracy decrease of ≤5%;</span>

Environmental adaptability testing: Operate for 200 hours in high and low temperature (-20℃~120℃) and damp heat (humidity 95%) environments, with stable performance.</span>

Market Pattern and Development Trend in Technical Manual of Cam Indexer

8.1 Global Market Pattern

8.1.1 Distribution of Major Manufacturers

Cambot from the United States, Stieber from Germany, and GF AgieCharmilles from Switzerland, leading in technology and focusing on the high-end market, with higher product prices (approximately 3 to 5 times that of domestic products);

Asian Manufacturers: Tansuo from Taiwan, China, Tallman Robotics from Chinese Mainland, and Sumitomo from Japan, offering high cost-effectiveness and occupying the mid-to-high-end market;

Domestic Manufacturers: KR from Jiangsu and LS from Zhejiang, focusing on the mid-to-low-end market, with low prices but slightly inferior precision and lifespan.

8.1.2 Market Size and Growth

The global market size of cam indexers was approximately US$1.2 billion in 2023, with an annual growth rate of 8~10%;The Chinese market accounts for about 35% of the total, making it the largest market globally, primarily driven by the increasing penetration of automation equipment (such as in the 3C, automotive, and food industries);

The high-end market (accuracy ≤±15 arc seconds) is growing the fastest, with an annual growth rate of over 15%, mainly applied in the semiconductor and medical equipment industries.

8.2 Technical Development Trends in Technical Manual of Cam Indexer

8.2.1 High Precision

The indexing accuracy has been improved to below ±10 arc seconds, utilizing nanoscale grinding processes and laser detection technology;

Dynamic accuracy optimization has been achieved through multi-objective optimization design of cam curves (such as minimizing acceleration and reducing vibration), enhancing stability during high-speed operation.

8.2.2 Lightweight and Miniaturization

By utilizing high-strength aluminum alloy materials and integrated casting processes, the product weight has been reduced by 30%;

With an ultra-thin and compact design, it meets the installation requirements of small-sized automation equipment, such as desktop robots.

8.2.3 Intelligentization and Digitization

 Integrate position sensors and temperature sensors to monitor operating status in real time, and achieve remote diagnosis and maintenance through PLC;

A digital design platform based on finite element analysis (FEA) and motion simulation, capable of quickly responding to customized requirements.

8.2.4 Greenification and Longevity

Maintenance-free technology upgrade, extending the service life to 200,000 hours;

Application of environmentally friendly lubricating grease, reducing environmental pollution;

Use of recyclable materials, aligning with the trend of carbon neutrality.

8.3 Future Application Prospects in Technical Manual of Cam Indexer

Semiconductor Manufacturing: Used in chip packaging equipment, with indexing accuracy of ±5 arc seconds, meeting micron-level positioning requirements;

New Energy Vehicles: High-precision processes such as battery pole piece cutting and motor rotor assembly; </span>

Artificial Intelligence Equipment: Positioning mechanisms for collaborative robots and automated guided vehicles (AGVs); </span&gt;

Biomedical: Precise indexing and positioning for vaccine production equipment and medical robots.</span&amp;gt;

You are welcome to watch more projects or visit our website to check other series or load down e-catalogues</a> for further technical data.

Youtube: https://www.youtube.com/@tallmanrobotics

Facebook: https://www.facebook.com/tallmanrobotics

Linkedin: https://www.linkedin.com/in/tallman-robotics
