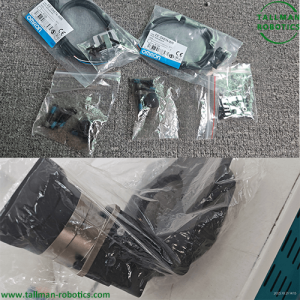

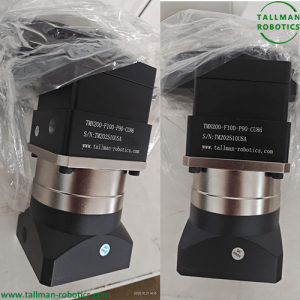

Hollow Shaft Rotary Ready for Indian Partner

Hollow Shaft Rotary, also known as the hollow shaft rotation mechanism, is a rotating mechanical structure with a hollow shaft body as its core transmission component. Hollow Shaft Rotary is widely used in industrial automation, precision machinery, robotics, and other fields.

The key feature of Hollow Shaft Rotary is the presence of a through-hole in the center of the shaft body, enabling the routing and arrangement of components such as cables, fluid pipelines, and drive shafts while simultaneously achieving torque transmission and precise rotational control.

This design combines dual advantages of space optimization and efficient power transmission, effectively addressing limitation of restricted pipeline layout in solid shaft structures.

Core structural composition of Hollow Shaft Rotary:

Hollow Shaft Rotary features a compact structure and consists of four main components:
1. Hollow shaft body: Made from high-strength alloy material, the through-hole dimensions are designed based on threading requirements, while the shaft wall balances rigidity and lightweight properties.
2. Bearing assembly: Typically employs precision ball bearings or cross-roller bearings to ensure stability and coaxiality during high-speed rotation of the shaft.
3. Transmission mechanism: Common connection methods include gears, pulleys, or couplings, enabling power input and speed adjustment.
4. Sealing and protective components: Hollow Shaft Rotary Includes dust seals and sealing rings to prevent impurity intrusion and lubricant leakage, suitable for complex working environments.

Some high-end also integrate encoders for precise detection of rotation angles and speeds.

Key Points for Maintenance and Operation
Precautions for Use: Avoid overloading operation. Select guide components appropriately based on the through-hole diameter to prevent friction wear between pipelines and shaft walls. During installation of Hollow Shaft Rotary Platforms, ensure coaxial alignment between the shaft body and matching components to minimize vibration and noise.

Maintenance: Regularly inspect bearing lubrication conditions. Replenish specialized grease every 3-6 months to prevent dry grinding damage. Clean debris around seals promptly, and replace them immediately if leakage or wear is detected. When idle for extended periods, rotate the shaft body of Hollow Shaft Rotary to prevent bearing corrosion and seizing.

Additionally, in harsh environments (e.g., high temperatures, dust), increase maintenance frequency. Periodically check shaft wear and transmission accuracy to ensure long-term stable operation and extend service life.
