Miniature Linear Modules Are Ready for Delivery to UK

Miniature linear modules are compact, precision linear motion systems that are commonly used in various applications such as medical devices, laboratory automation, electronics manufacturing, and more. These modules typically consist of a linear guide, a linear motor or a lead screw driven system, and in some cases, integrated position feedback sensors.

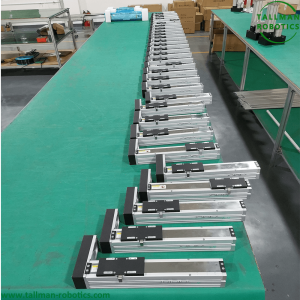

Miniature Linear Modules

When considering miniature linear modules, it’s important to consider factors such as travel length, load capacity, accuracy, repeatability, and environmental factors like dust and moisture resistance. Additionally, the specific application requirements will also dictate the choice of linear module, whether it’s for high-speed positioning, high-precision movement, or any other specific need.

Miniature linear modules, also known as miniature linear stages, are compact mechanical systems designed to provide precise linear motion in a small form factor. They are commonly used in various applications that require precise positioning, such as microscopy, semiconductor manufacturing, biotechnology, optics, and electronics assembly.

These modules typically consist of a linear actuator or motorized stage, a linear guide or rail system, and a feedback mechanism for accurate position control. They are designed to offer high-resolution movement with minimal play or backlash, allowing for precise and repeatable positioning.

Miniature linear modules come in different configurations, including single-axis stages, multi-axis stages, and gantry systems. Single-axis stages provide linear motion along a single axis, while multi-axis stages offer motion in multiple directions, such as X, Y, and Z axes. Gantry systems combine multiple linear modules to provide coordinated motion in two or more axes.

Single-Axis Stages: Single-axis stages are the simplest form of miniature linear modules. They provide linear motion along a single axis, typically referred to as the X-axis. These stages are commonly used when motion is required in only one direction. They are often compact, lightweight, and offer high precision and repeatability.

Multi-Axis Stages: Multi-axis stages, also known as XY stages or XYZ stages, offer motion in multiple directions. They enable linear movement along two or three orthogonal axes, typically X, Y, and Z. These stages allow for positioning and alignment in multiple dimensions, making them suitable for applications that require complex motion control, such as 3D printing, scanning systems, or laser processing.

Gantry Systems: Gantry systems consist of multiple linear stages arranged in a configuration that provides coordinated motion along two or more axes. They offer precise and synchronized movement in multiple directions, allowing for increased flexibility and versatility in positioning. Gantry systems are commonly used in applications such as pick-and-place machines, automated inspection systems, and CNC machining.

Miniature Translation Stages: Miniature translation stages are linear modules designed for small-scale positioning tasks. They are typically compact, lightweight, and offer high precision. These stages often feature a small travel range, ranging from a few millimeters to a few centimeters. They are commonly used in applications such as microscopy, optical alignment, and microelectronics assembly.

Compact Linear Actuators: Compact linear actuators are miniature modules that provide linear motion through an integrated actuator mechanism. They combine the linear motion and actuation mechanism into a single unit, eliminating the need for additional components. Compact linear actuators are often used in applications where space is limited, and precise linear motion is required, such as robotics, medical devices, and automation systems.

Custom Configurations: In addition to the standard configurations mentioned above, miniature linear modules can be customized to meet specific application requirements. Custom configurations may involve combining different stages, adding additional axes, or incorporating specialized features such as vacuum compatibility, high-speed capabilities, or ultra-precision positioning.

It’s important to note that the availability of specific configurations may vary among manufacturers and suppliers. Therefore, it’s advisable to consult with specialized companies in the field of motion control and positioning systems to determine the most suitable configuration for your specific application.
